12V 10Ah Li-ion Battery (NMC Deep Cycle)


18 In Stock

Regular price $99.99
The Aegis Battery 12V 10Ah Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for bike lighting, RC toys, robots, laptops, and DVD external batteries. The battery comes with pre-assembled integrated Anderson Power...

The Aegis Battery 12V 10Ah Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for bike lighting, RC toys, robots, laptops, and DVD external batteries. The battery comes with pre-assembled integrated Anderson Power Pole connectors allowing for easy compatibility. The Aegis battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

ABL-012010P Product Manual
    Specifications
    Battery Type PVC Pack
    Battery Chemistry Lithium-Ion
    Cell Type/Assembly Method Cylindrical cells/welded
    Voltage (V) 12V
    Capacity (Ah) 10Ah
    Energy Stored (Wh) 120 Watt-Hours
    Weight 0.70 kg (1.55 lbs)
    Dimension Metric (L x W x H)  100 mm x 70 mm x 70 mm
    Dimension Imperial (L x W x H)  3.9 in. x 2.8 in. x 2.8 in.
    Discharge Connector PP45 Red/Black Powerpole
    Charge Connector DC Barrel Plug (Female)
    Cycle Life 1000+ cycles
    Normal Charge Current 3.0 Amps
    Nominal Continuous Discharge Current 5.0 Amps
    Maximum Continuous Discharge Current 10.0 Amps
    Maximum Peak Discharge Current 20.0 Amps
    Charge Temperature 0°C to 45°C
    Discharge Temperature -20°C to 60°C
    Operating Humidity 60±20%R.H
    Storage Humidity 60±20%R.H
    Automatic Battery Protection Module/System Low Voltage Disconnect,
    Over Voltage Disconnect,
    Short Circuit Protection,
    Reverse Polarity Protection,
    Cell Balancing,

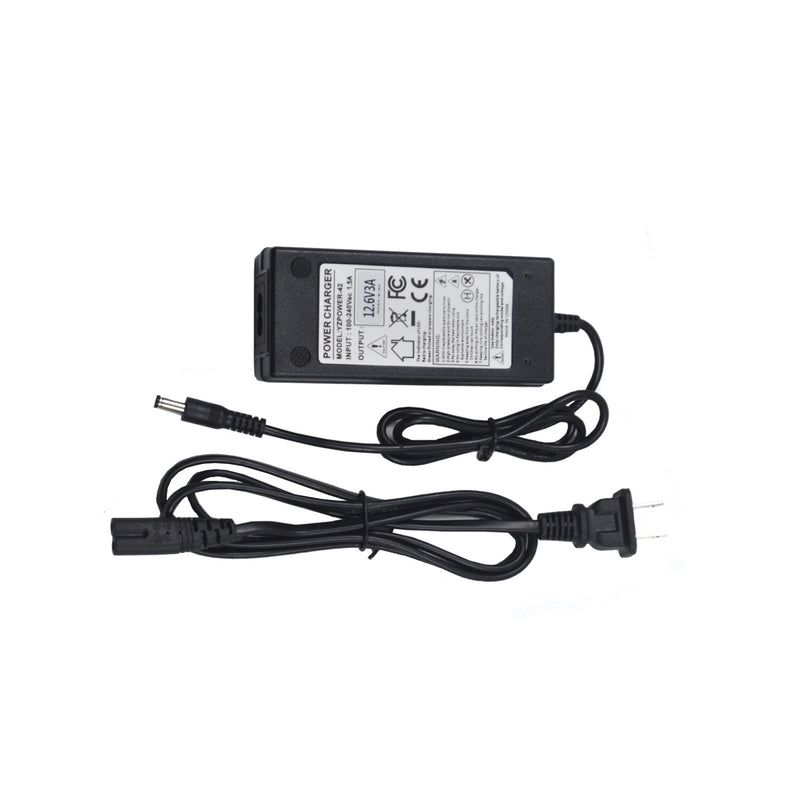

    Compatible AC-to-DC Charger Specifications:
    Output Voltage: 12.6VDC
    Current: 3A
    Connector: DC Plug
    Model Number: CRG-01203M

    NMC Advantage
    - Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
    - All-Aspect Solution with best overall balance of features
    - Highest Specific Energy (150-220Wh/kg)
    - Ideally Suited for EV and High Energy Consumption Applications
    - Excellent Lifespan (1000-2000 Cycles Average)

    Intelligent Technology
    - Battery Management System (BMS) Board as Standard
    - Every Battery has bespoke board matching its performance parameters
    - Comprehensively balances charging and discharging
    - Internal balancing circuitry and charger circuitry inside BMS
    - Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
    - Dramatically extends service life

    Comprehensive Improvements
    - Achieve full depth discharge of 100% Label Capacity
    - “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
    - Reliable, repeatable full depth cycling without system life cycle degradation
    - NMC Systems can be fully discharged safely without impact on system performance
    - Multiple times usable capacity of Lead Acid
