$407.99 USD

The Aegis 12V 55Ah Lithium Iron Phosphate - LiFePo4 Battery is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 12V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery.

The battery comes with integrated M6 Screws, making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

For out of stock kits, we may be able to provide another compatible charger. Please contact us and we can check for you.

Battery Model Number: ALF-012055A

ALFA-012055A Battery Spec and User Manual

Charger Model Number: CRF-12010P

For more info & usage notes for our lithium batteries, please click here.

Specifications

Model ALF-012055A
Battery Type ABS Case
Battery Chemistry Lithium Iron Phosphate - LiFePo4
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 12V
Capacity (Ah) 55Ah
Energy Stored (Wh) 660 Watt-Hours
Weight 13.2 lbs. (6.0 kg)
Dimension Metric (L x W x H) 230 mm x 137 mm x 210 mm
Dimension Imperial (L x W x H) 9.2 in x 5.5 in x 8.4 in
Cycle Life 3000+ cycles
Normal Charge Current 10 Amps
Nominal Continuous Discharge Current 27.5 Amps
Maximum Continuous Discharge Current 55 Amps
Maximum Peak Discharge Current 110 Amps
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect
Over Voltage Disconnect
Short Circuit Protection
Reverse Polarity Protection
Cell Balancing

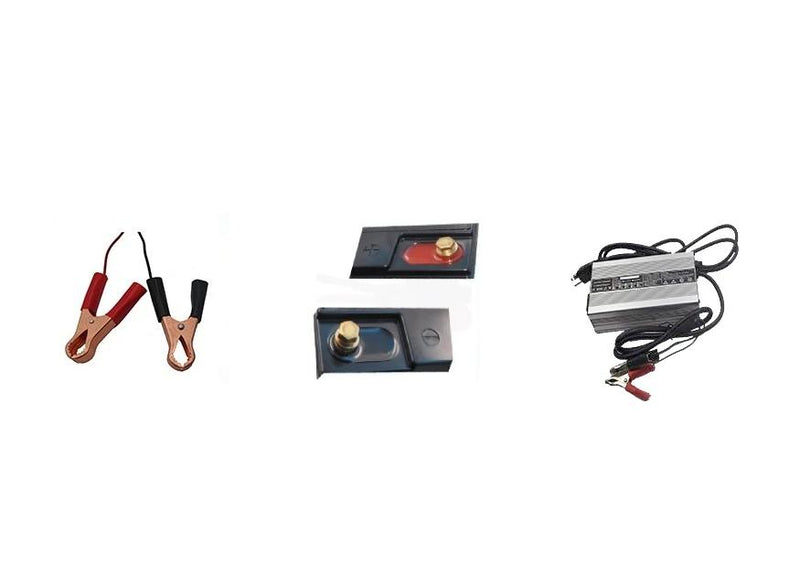

Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 14.6VDC
Current: 10A
Connector: Alligator Clip
Model Number: CRF-12010P

LFP Advantage
- Advanced LFP (Lithium Iron Phosphate) Chemistry
- Optimized Deep Cycle Performance
- Double the density versus traditional SLA/AGM/GEL
- 60-70% weight reduction versus traditional SLA/AGM/GEM
- High thermal tolerance
- Ideal for Electronics
- 10+ Years Lifespan

Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life

Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- LFP Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid

Policy
Warranty: 10 years LFP Battery Warranty
30 Day Money Back Return | 5 Year Repair/Replace | 6 -10 Year Pro Rated Based on Remaining Capacity
Cancellation: Within 24 Hours ⟶ No charge
Shipping: Standard within 2-3 business days
