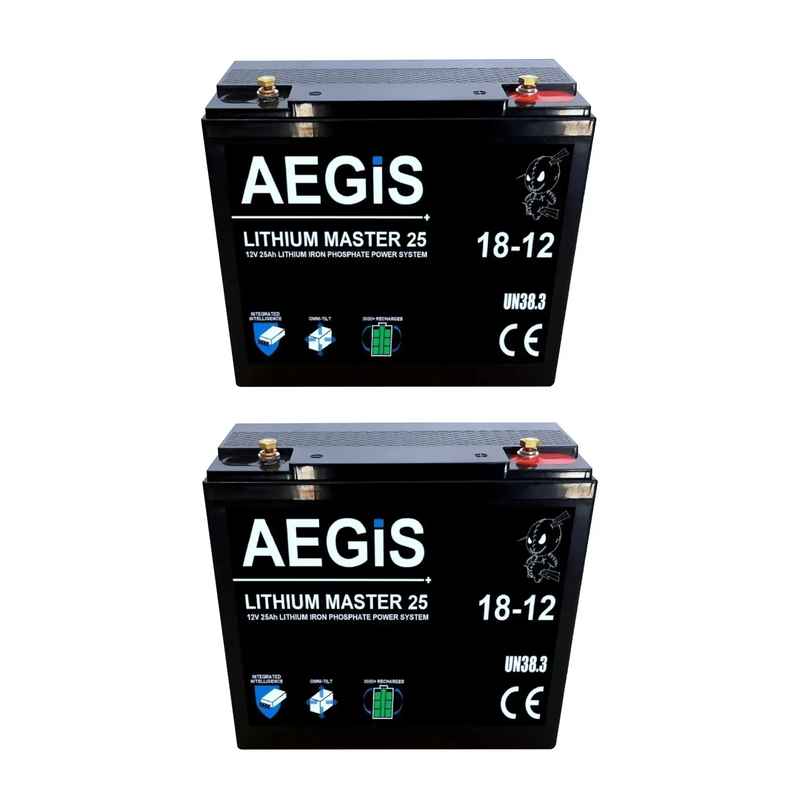

The Aegis Battery 12V 25Ah Lithium Iron Phosphate - LiFePo4 Battery is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 12V and 24V devices (run in series). It is perfect for mobility scooters owners that want longer life, more range and faster charging for their mobility scooter battery.

This mobility scooter battery upgrade kit includes:

  • (x2) 12V 25Ah LiFePO4 Batteries (300 Wh Each)
  • (x1) 24V 5A LiFePO4 Charger
  • (x1) XLR Adapter
  • (x1) Battery Voltmeter

Mobility Kit - Installation Guide

Many scooters use two 12V Batteries connected in series to output 24V.  For Lithium Batteries you will need to use a new lithium 24V 5A Charger and XLR adapter to be able to plug the charger directly into the scooter's charging port.

While it should be a simple drop in replacement, please consult your mobility scooter manual and manufacturer before upgrading to lithium batteries to ensure safety and compatibility.

The battery comes with integrated M5 Terminals, making it a perfect drop in replacement solution for your old lead acid batteries. The Aegis lithium battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

For out of stock kits, we may be able to provide another compatible charger. Please contact us and we can check for you.

Battery Model Number: ALF-012025A

Charger Model Number: CRF-2405A

For more info & usage notes for our lithium batteries, please click here.

Specifications

Battery Chemistry

LFP (LiFePO4) - Lithium Iron Phosphate

Battery Case ABS Case
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 12V
Capacity (Ah) 25Ah
Energy Stored (Wh) 300 Watt-Hours
Weight 6.4 lbs. (2.9 kg)
Dimension Metric (L x W x H)

180 mm x 75 mm x 170 mm (+/-2mm)

Dimension Imperial (L x W x H)

7.1 in x 3.0 in x 6.7 in (+/- 0.1in)

Cycle Life 3000+ cycles
Charge / Discharge Connector M5 Terminal
Normal Charged Voltage 14.6V
Normal Charge Current 5.0 Amps
Normal Battery Cutoff Voltage 9.2V
Nominal Continuous Discharge Current 12.5 Amps
Maximum Continuous Discharge Current 25.0 Amps
Maximum Peak Discharge Current 50.0 Amps (2 seconds)
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect
Over Voltage Disconnect
Short Circuit Protection
Reverse Polarity Protection
Cell Balancing


Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 29.2VDC
Current: 5A
Connector: Anderson
Model Number: CRF-02405A

LFP Advantage
- Advanced LFP (Lithium Iron Phosphate) Chemistry
- Optimized Deep Cycle Performance
- Double the density versus traditional SLA/AGM/GEL
- 60-70% weight reduction versus traditional SLA/AGM/GEM
- High thermal tolerance
- Ideal for Electronics
- 10+ Years Lifespan

Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life

Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- LFP Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid
