$529.99 USD

The Aegis 48V 25 Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 48V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson Power Pole PP45 and SB50 connectors making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

If this connection does not meet your needs, you may also view alternative adapters here.

For out of stock kits, we may be able to provide another compatible charger. Please contact us and we can check for you.

ABL-048025P Product Manual

For more info & usage notes for our lithium batteries, please click here.

Specifications

Battery Chemistry NMC (Nickel Manganese Cobalt)
Battery Case PVC Wrapped
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 48V
Capacity (Ah) 25Ah
Energy Stored (Wh) 1200 Watt-Hours
Weight 15.1 lbs. (6.8 kg)
Dimension Metric (L x W x H) 262 mm x 200 mm x 82 mm (+/-2mm)
Dimension Imperial (L x W x H) 10.2 in x 7.9 in x 3.2 in (+/-0.1in)
Cycle Life 1000+ cycles
Discharging Connector SB50
Charging Connector PP45 Anderson
Normal Charged Voltage 54.6V
Normal Charge Current 3.0 Amps
Normal Battery Cutoff Voltage 36.4V
Nominal Continuous Discharge Current 12.5 Amps
Maximum Continuous Discharge Current 25.0 Amps
Maximum Peak Discharge Current 50.0 Amps (2 Seconds)
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing,

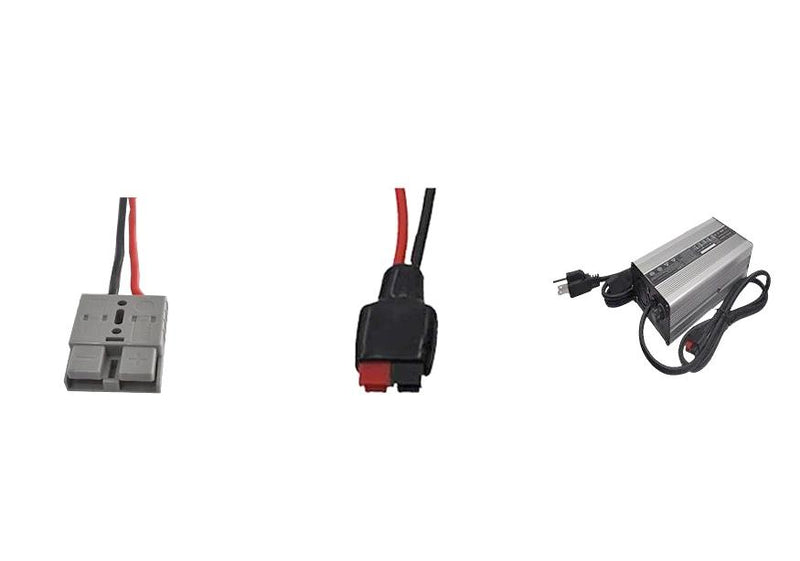

Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 54.6VDC
Current: 5A
Connector: Anderson
Model Number: CRG-04805M


NMC Advantage
- Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
- All-Aspect Solution with best overall balance of features
- Highest Specific Energy (150-220Wh/kg)
- Ideally Suited for EV and High Energy Consumption Applications
- Excellent Lifespan (1000-2000 Cycles Average)

Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life

Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- NMC Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid


Policy
Warranty: 2 years
Repair or Replace: 2 years
Returns/exchange: 30 days (Return ⟶ a 10% restocking fee plus shipping; exchange ⟶ charging shipping cost)
Cancellation: Within 24 Hours ⟶ No charge
Shipping: Standard within 2-3 business days
