$199.99 USD

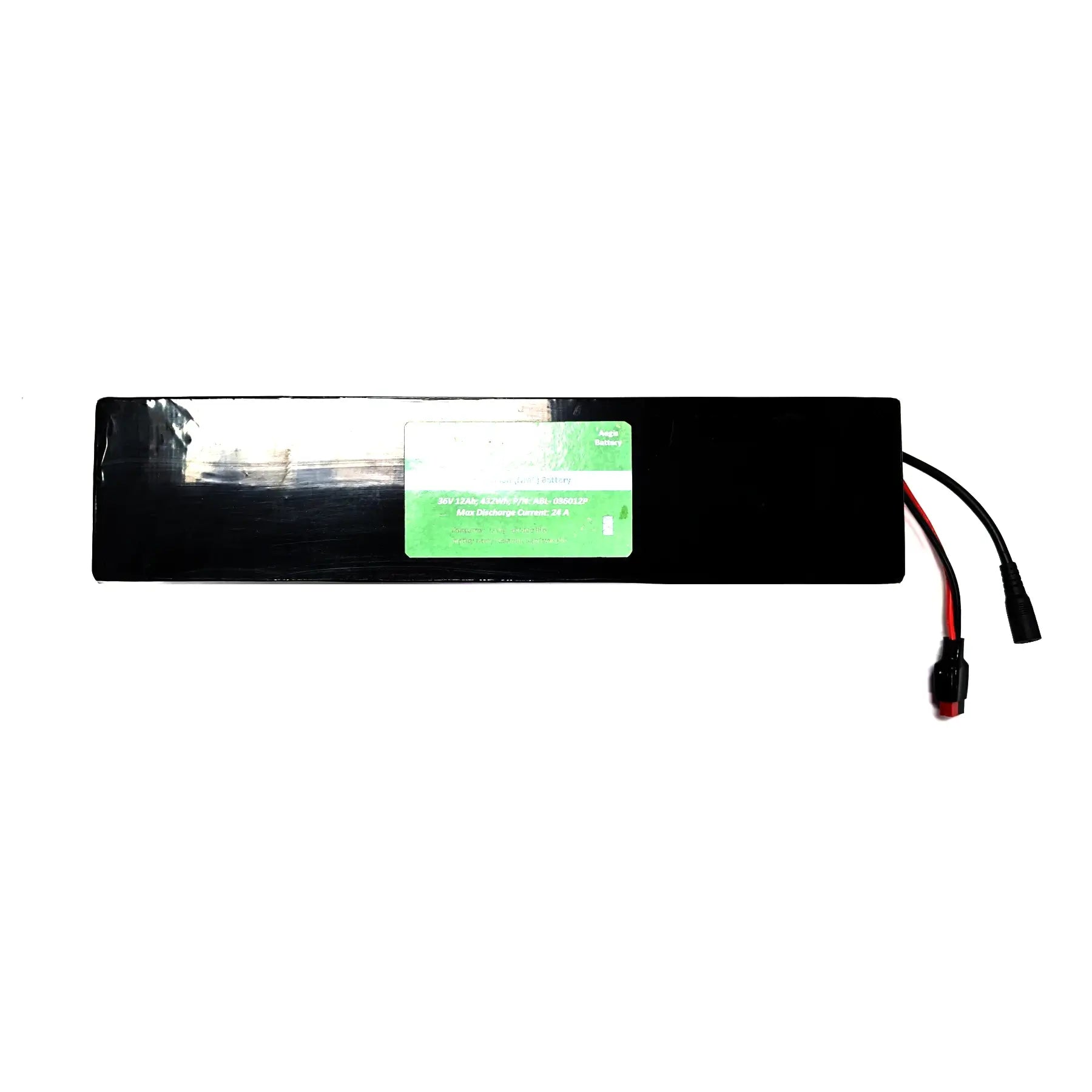

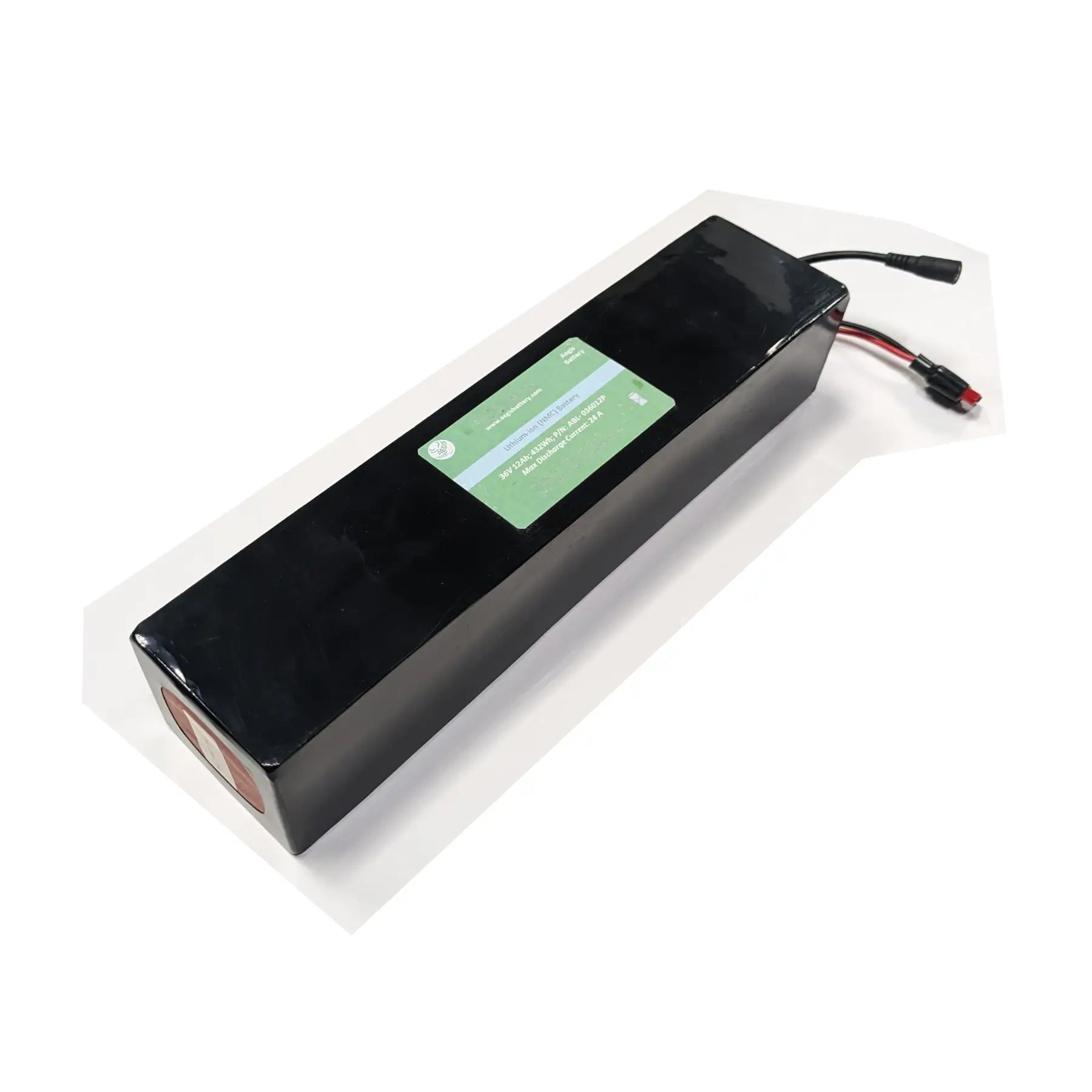

The Aegis 36V 12Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 36V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson PP45 and DC Plug connectors making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

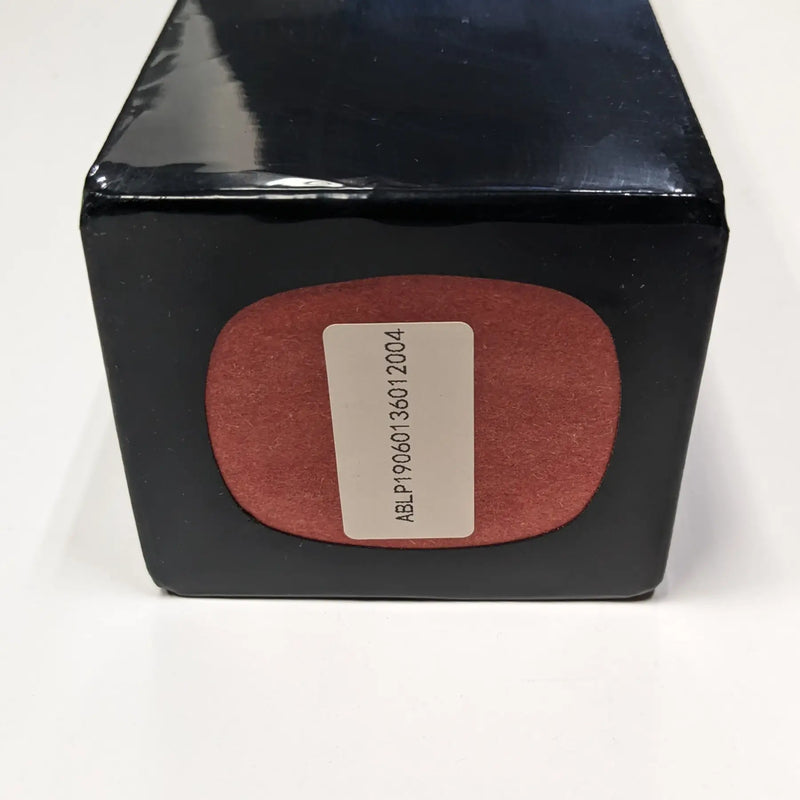

Serial#: ABLP19060136012004

If this connection does not meet your needs, you may also view alternative adapters here.

For out of stock kits, we may be able to provide another compatible charger. Please contact us and we can check for you.

ABL-036012P-L Product Manual

For more info & usage notes for our lithium batteries, please click here.

    Specifications

    Battery Type PVC Pack
    Battery Chemistry Lithium-Ion
    Cell Type/Assembly Method Cylindrical cells/welded
    Voltage (V) 36V
    Capacity (Ah) 12Ah
    Energy Stored (Wh) 432 Watt-Hours
    Weight 5.84 lbs. (2.65 kg)
    Dimension (L x W x H) Metric 350 mm x 82 mm x 72 mm
    Dimension (L x W x H)  13.8 in x 3.25 in  x 2.8"
    Cycle Life 1000+ cycles
    Normal Charge Current 3.0 Amps
    Maximum Continuous Charge Current 6.0 Amps
    Nominal Continuous Discharge Current 6.0 Amps
    Maximum Continuous Discharge Current 12.0 Amps
    Maximum Pulse (Peak) Discharge Current (2 sec.) 24.0 Amps
    Charge Temperature 0°C to 45°C
    Discharge Temperature -20°C to 60°C
    Operating Humidity 60±25%R.H
    Storage Humidity 60±25%R.H
    Automatic Battery Protection Module/System Low Voltage Disconnect,
    Over Voltage Disconnect,
    Short Circuit Protection,
    Reverse Polarity Protection,
    Cell Balancing



    Compatible AC-to-DC Charger Specifications:

    Input Voltage: AC110V-240V, 50/60HZ
    Output Voltage: 42V
    Current: 3A
    Connector: DC Plug
    Model Number: CRG-03603P

    NMC Advantage
    - Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
    - All-Aspect Solution with best overall balance of features
    - Highest Specific Energy (150-220Wh/kg)
    - Ideally Suited for EV and High Energy Consumption Applications
    - Excellent Lifespan (1000-2000 Cycles Average)

    Intelligent Technology
    - Battery Management System (BMS) Board as Standard
    - Every Battery has bespoke board matching its performance parameters
    - Comprehensively balances charging and discharging
    - Internal balancing circuitry and charger circuitry inside BMS
    - Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
    - Dramatically extends service life

    Comprehensive Improvements
    - Achieve full depth discharge of 100% Label Capacity
    - “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
    - Reliable, repeatable full depth cycling without system life cycle degradation
    - NMC Systems can be fully discharged safely without impact on system performance
    - Multiple times usable capacity of Lead Acid

    Policy
    Warranty: 30 Days Limited
    Shipping: Standard within 2 business days
