$119.00 USD

The Aegis Battery 16V 25Ah Lithium Iron Phosphate - LiFePo4 Battery* is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 16V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery.

The battery comes with integrated M5 Screw Terminals, making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

*B-Stock item: This item is B-stock and may be renewed, refurbished, or discontinued. Please note, B-stock items are fully tested but only carry a limited 30-day warranty and standard terms and conditions apply.

Battery Model Number:  ALF-016025A

ALF-016025A Battery Specs and User Manual

Charger Model Number: CRF-1605P


Model ALF-016025A
Battery Type ABS CASE
Battery Chemistry Lithium Iron Phosphate - LiFePo4
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 16V
Capacity (Ah) 25Ah
Energy Stored (Wh) 400 Watt-Hours
Weight 7.3 lbs. (3.3 kg)
Dimension Metric (L x W x H) 180 mm x 75 mm x 170 mm
Dimension Imperial (L x W x H) 7.2 in x 3.0 in x 6.8 in
Cycle Life 3000+ cycles
Normal Charge Current 5.0 Amps
Nominal Continuous Discharge Current 12.5 Amps
Maximum Continuous Discharge Current 25.0 Amps
Maximum Peak Discharge Current 50.0 Amps
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing

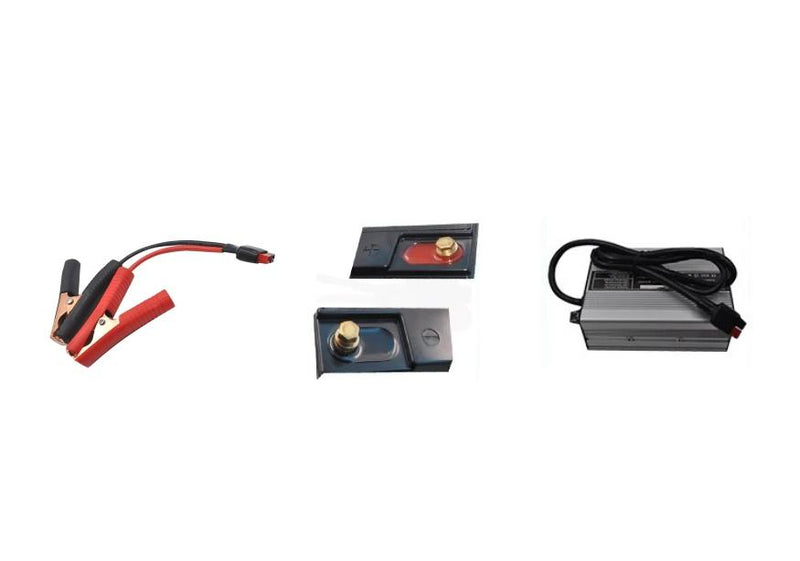

Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 18.25VDC
Current: 5A
Connector: Alligator Clip
Model Number: CRF-1605P

LFP Advantage
- Advanced LFP (Lithium Iron Phosphate) Chemistry
- Optimized Deep Cycle Performance
- Double the density versus traditional SLA/AGM/GEL
- 60-70% weight reduction versus traditional SLA/AGM/GEM
- High thermal tolerance
- Ideal for Electronics
- 10+ Years Lifespan

Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life

Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- LFP Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid

Warranty: 30 Days
Shipping: Standard within 2 business days
