48V 15Ah Li-ion Battery (NMC Deep Cycle)


3 In Stock

Regular price $319.99
The Aegis 48V 15 Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 48V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson Power Pole...

The Aegis 48V 15 Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 48V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson Power Pole connectors making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

This battery is also available with a bundled PP35 Powerpole to C14 Male Connector or PP35 Powerpole to IEC 320 Female Connector free upon request. These adapters can also be purchased separately HERE

ABL-048015 Product Manual


    Specifications

    Model ABL-048015P
    Battery Type PVC Pack
    Battery Chemistry Lithium-Ion
    Cell Type/Assembly Method Cylindrical cells/welded
    Voltage (V) 48V
    Capacity (Ah) 15Ah
    Energy Stored (Wh) 720 Watt-Hours
    Weight 8.93 lbs. (4.05 kg)
    Dimension (L x W x H) 255 mm x 120 mm x 85 mm
    Cycle Life 1000+ cycles
    Normal Charge Current 3.0 Amps
    Nominal Continuous Discharge Current 7.5 Amps
    Maximum Continuous Discharge Current 15.0 Amps
    Maximum Peak Discharge Current 30.0 Amps
    Charge Temperature 0°C to 45°C
    Discharge Temperature -20°C to 60°C
    Operating Humidity 60±25%R.H
    Storage Humidity 60±25%R.H
    Automatic Battery Protection Module/System Low Voltage Disconnect,
    Over Voltage Disconnect,
    Short Circuit Protection,
    Reverse Polarity Protection,
    Cell Balancing,

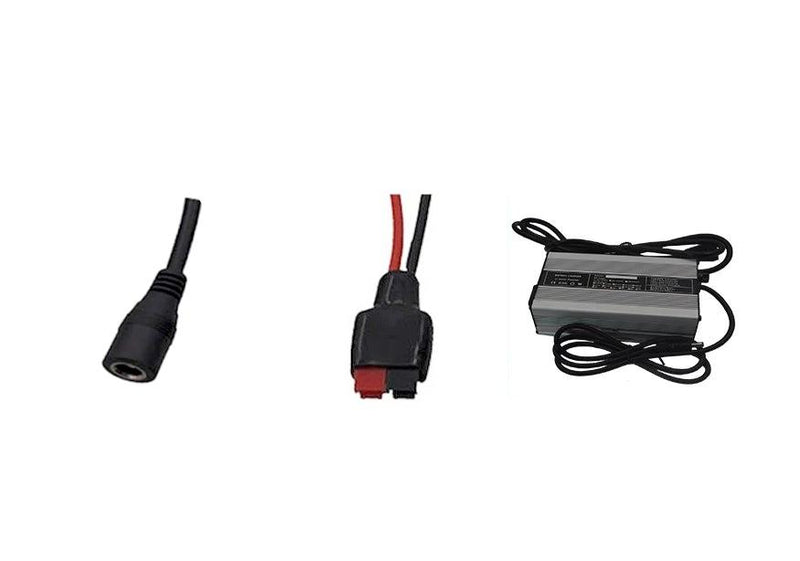

    Compatible AC-to-DC Charger Specifications:

    Input Voltage: AC110V-240V, 50/60HZ
    Output Voltage: 54.6VDC
    Current: 3A
    Connector: DC Barrel
    Model Number: CRG-04803M

    NMC Advantage
    - Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
    - All-Aspect Solution with best overall balance of features
    - Highest Specific Energy (150-220Wh/kg)
    - Ideally Suited for EV and High Energy Consumption Applications
    - Excellent Lifespan (1000-2000 Cycles Average)

    Intelligent Technology
    - Battery Management System (BMS) Board as Standard
    - Every Battery has bespoke board matching its performance parameters
    - Comprehensively balances charging and discharging
    - Internal balancing circuitry and charger circuitry inside BMS
    - Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
    - Dramatically extends service life

    Comprehensive Improvements
    - Achieve full depth discharge of 100% Label Capacity
    - “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
    - Reliable, repeatable full depth cycling without system life cycle degradation
    - NMC Systems can be fully discharged safely without impact on system performance
    - Multiple times usable capacity of Lead Acid


    Policy
    Warranty: 2 years standard Lithium-Ion Battery Warranty
    Repair or Replace: first 2 years
    Returns/exchange: 30 days (Return ⟶ a 10% restocking fee plus shipping; exchange ⟶ charging shipping cost)
    Cancellation: Within 24 Hours ⟶ No charge
    Shipping: Standard within 2 business days
