$745.99 USD

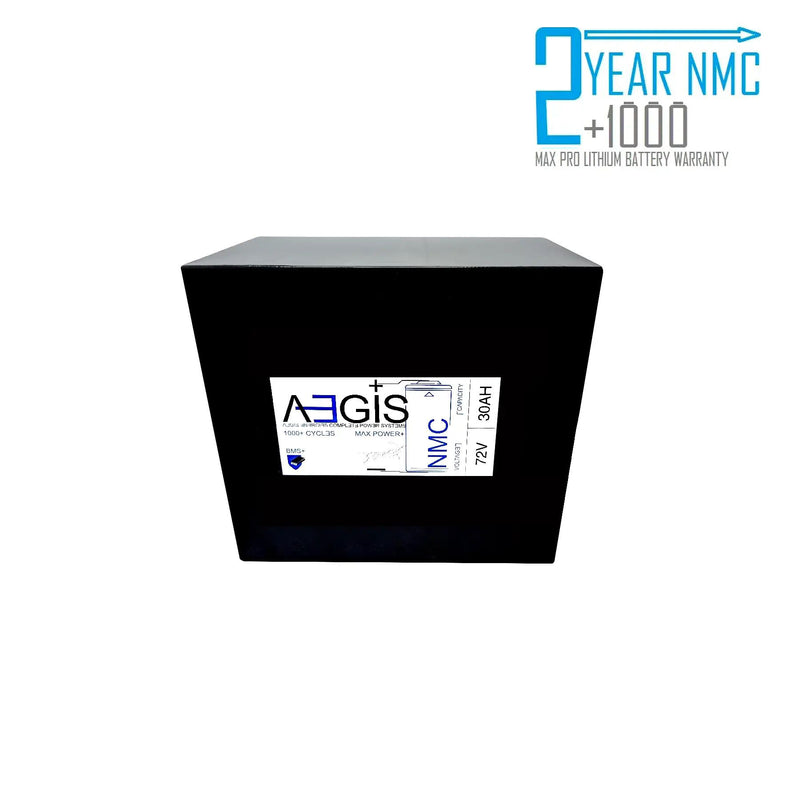

The Aegis Battery 72V 30Ah Li-ion Battery is a state of the art rechargeable battery pack. It is perfect for E-scooters, E-bikes, Solar Applications, Robots, and Other applications that require a higher-energy density battery.

This battery comes with the Anderson PP45 Power Pole Connection used for Charging, as well as the SB50 Connection used for Discharging. Making it a perfect drop in solution for your applications.

The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

If this connection does not meet your needs, you may also view alternative adapters here.

For out of stock kits, we may be able to provide another compatible charger. Please contact us and we can check for you.

ABL-072030P Product Manual

For more info & usage notes for our lithium batteries, please click here.

    Specifications

    Battery Chemistry NMC (Nickel Manganese Cobalt)
    Battery Case PVC Wrapped
    Battery Chemistry Lithium-Ion
    Cell Type/Assembly Method Cylindrical cells/welded
    Voltage (V) 72V
    Capacity (Ah) 30Ah
    Energy Stored (Wh) 2160 Watt-Hours
    Weight 28.0 lbs. (12.7 kg)
    Dimension (L x W x H) Imperial 9.8 in x 9.1 in x 5.6 in (+/-0.1in)
    Dimension (L x W x H) 248 mm x 230 mm x 141 mm (+/-2mm)
    Cycle Life 1000+ cycles
    Normal Charged Voltage 84V
    Normal Charge Current 5.0 Amps
    Normal Battery Cutoff Voltage 56V
    Nominal Continuous Discharge Current 15.0 Amps
    Maximum Continuous Discharge Current 30.0 Amps
    Maximum Pulse (Peak) Discharge Current 60.0 Amps (2 Seconds)
    Charge Temperature 0°C to 45°C
    Discharge Temperature -20°C to 60°C
    Operating Humidity 60±25%R.H
    Storage Humidity 60±25%R.H
    Automatic Battery Protection Module/System Low Voltage Disconnect,
    Over Voltage Disconnect,
    Short Circuit Protection,
    Reverse Polarity Protection,
    Cell Balancing



    Compatible AC-to-DC Charger Specifications:

    Input Voltage: AC110V-240V, 50/60HZ
    Output Voltage: 84VDC
    Current: 5A
    Connector: Anderson PP45
    Model Number: CRG-07205M

    NMC Advantage
    - Advanced NMC (Nickel Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
    - All-Aspect Solution with best overall balance of features
    - Highest Specific Energy (150-220Wh/kg)
    - Ideally Suited for EV and High Energy Consumption Applications
    - Excellent Lifespan (1000-2000 Cycles Average)

    Intelligent Technology
    - Battery Management System (BMS) Board as Standard
    - Every Battery has bespoke board matching its performance parameters
    - Comprehensively balances charging and discharging
    - Internal balancing circuitry and charger circuitry inside BMS
    - Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
    - Dramatically extends service life

    Comprehensive Improvements
    - Achieve full depth discharge of 100% Label Capacity
    - “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
    - Reliable, repeatable full depth cycling without system life cycle degradation
    - NMC Systems can be fully discharged safely without impact on system performance
    - Multiple times usable capacity of Lead Acid


    Policy
    Warranty: 2 years NMC Battery Warranty
    30 Day Money Back Return | 2 Year Repair/Replace
    Cancellation: Within 24 Hours ⟶ No charge
    Shipping: Standard within 2-3 business days
