48V 20Ah Li-ion Battery - NMC Lithium Ion Deep Cycle

Aegis Battery
$419.99 USD

The Aegis 48V 20Ah Li-ion Battery is a state of the art rechargeable battery pack made with 18650 cells designed for 48V devices. It is perfect for e-scooters, e-bikes, solar applications, robots, and other applications that require a higher-energy density battery.

The battery comes with integrated Anderson Power Pole PP45 connectors making it a perfect drop in solution for your applications. The Aegis battery has a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

ABL-048020P Product Manual

For more info & usage notes for our lithium batteries, please click here.

    Specifications

    Battery Chemistry NMC (Nickel Manganese Cobalt)
    Battery Case PVC Wrapped
    Cell Type/Assembly Method Cylindrical cells/welded
    Voltage (V) 48V
    Capacity (Ah) 20Ah
    Energy Stored (Wh) 960 Watt-Hours
    Weight 11.68 lbs. (5.3 kg)
    Dimension Metric (L x W x H) 260 mm x 162 mm x 75 mm (+/-2mm)
    Dimension Imperial (L x W x H) 10.2 in x 6.4 in x 3.0 in (+/-0.1in)
    Cycle Life 1000+ cycles
    Discharging Connector PP45 Anderson (AWG 12)
    Charging Connector PP45 Anderson (AWG 14)
    Normal Charged Voltage 54.6V
    Normal Charge Current 3.0 Amps
    Normal Battery Cutoff Voltage 36.4V
    Nominal Discharge Current 10.0 Amps
    Maximum Continuous Discharge Current 20.0 Amps
    Maximum Pulse (Peak) Discharge Current  40.0 Amps (2 Seconds)
    Charge Temperature 0°C to 45°C
    Discharge Temperature -20°C to 60°C
    Operating Humidity 60±25%R.H
    Storage Humidity 60±25%R.H
    Automatic Battery Protection Module/System Low Voltage Disconnect,
    Over Voltage Disconnect,
    Short Circuit Protection,
    Reverse Polarity Protection,
    Cell Balancing

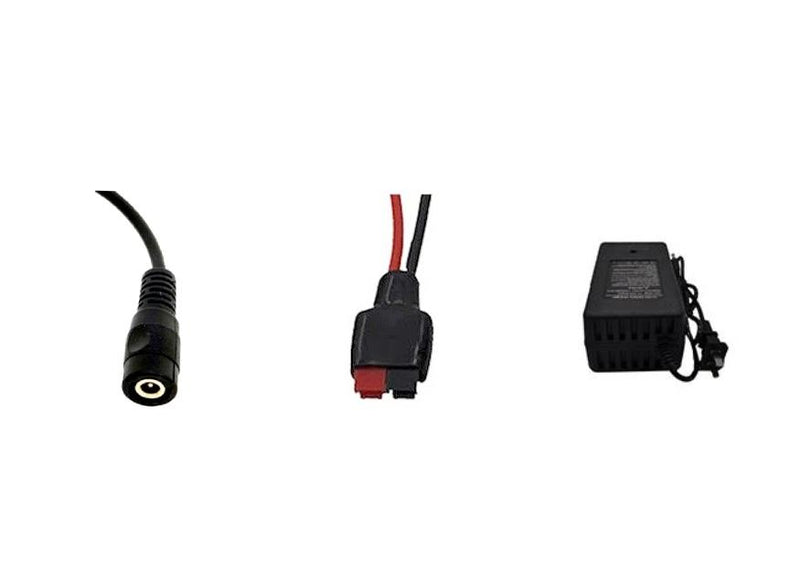

    Compatible AC-to-DC Charger Specifications:

    Input Voltage: AC110V-240V, 50/60HZ
    Output Voltage: 54.6VDC
    Current: 5A
    Connector: DC Barrel
    Model Number: CRG-04805M

    NMC Advantage
    - Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
    - All-Aspect Solution with best overall balance of features
    - Highest Specific Energy (150-220Wh/kg)
    - Ideally Suited for EV and High Energy Consumption Applications
    - Excellent Lifespan (1000-2000 Cycles Average)

    Intelligent Technology
    - Battery Management System (BMS) Board as Standard
    - Every Battery has bespoke board matching its performance parameters
    - Comprehensively balances charging and discharging
    - Internal balancing circuitry and charger circuitry inside BMS
    - Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
    - Dramatically extends service life

    Comprehensive Improvements
    - Achieve full depth discharge of 100% Label Capacity
    - “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
    - Reliable, repeatable full depth cycling without system life cycle degradation
    - NMC Systems can be fully discharged safely without impact on system performance
    - Multiple times usable capacity of Lead Acid


    Policy
    Warranty: 5 years NMC Battery Warranty
    30 Day Money Back Return | 2 Year Repair/Replace
    2-5 Year Pro Rated Based on Remaining Capacity
    Cancellation: Within 24 Hours ⟶ No charge
    Shipping: Standard within 2 business days
