Aegis Battery
$44.99 USD

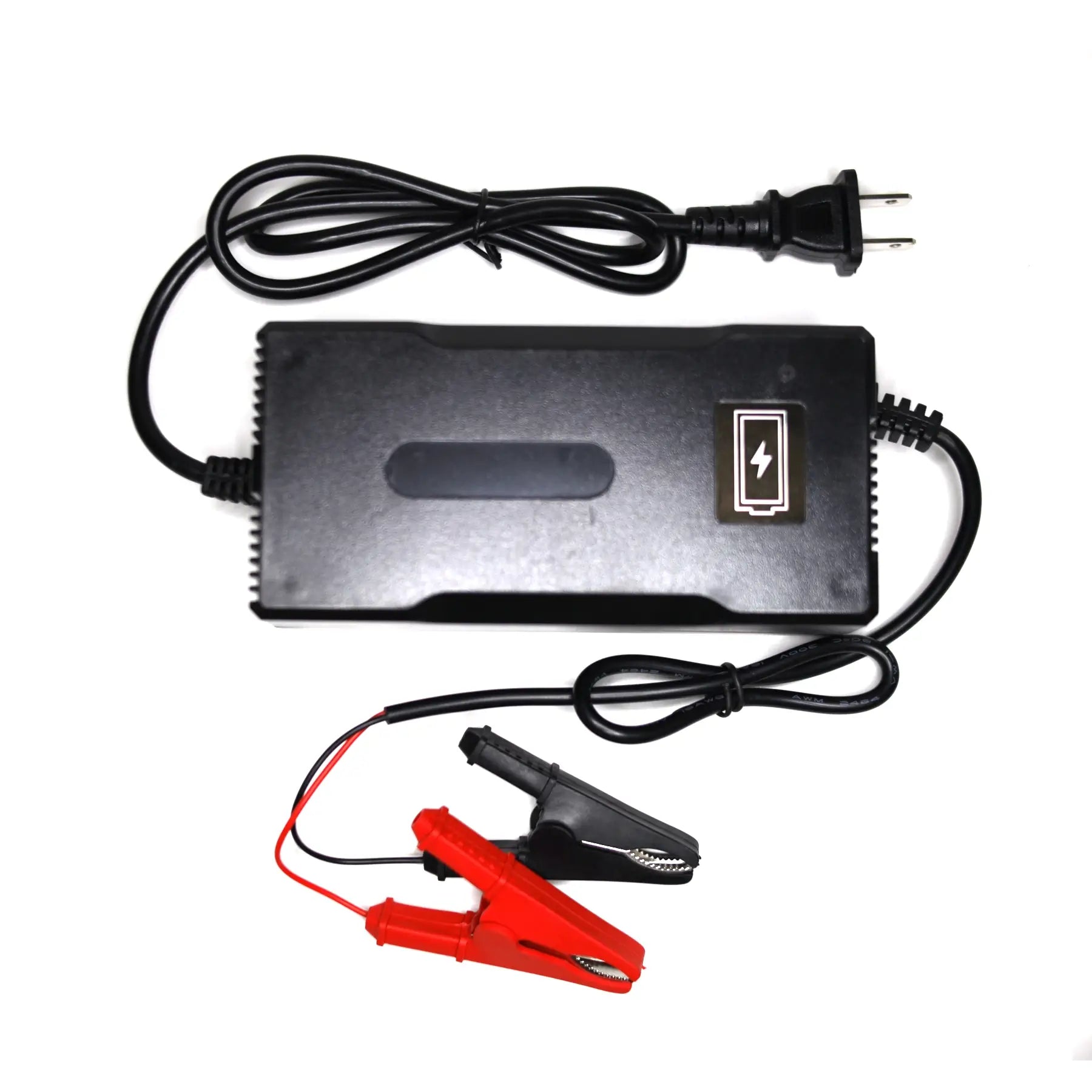

The Aegis 36V 5A LFP Charger is a state of the art energy transfer device made and designed for 36V LiFePO4 / LFP battery packs. This charger provides the required constant current, followed by constant voltage (CC/CV) charge profile for charging Li-ion batteries. This charger includes an LED that changes from red to green once the battery has reached full capacity.

Specifications

Model: CRF-03605P
Product Case: Plastic
Battery Chemistry: Lithium Iron Phosphate - LiFePo4 (LFP)

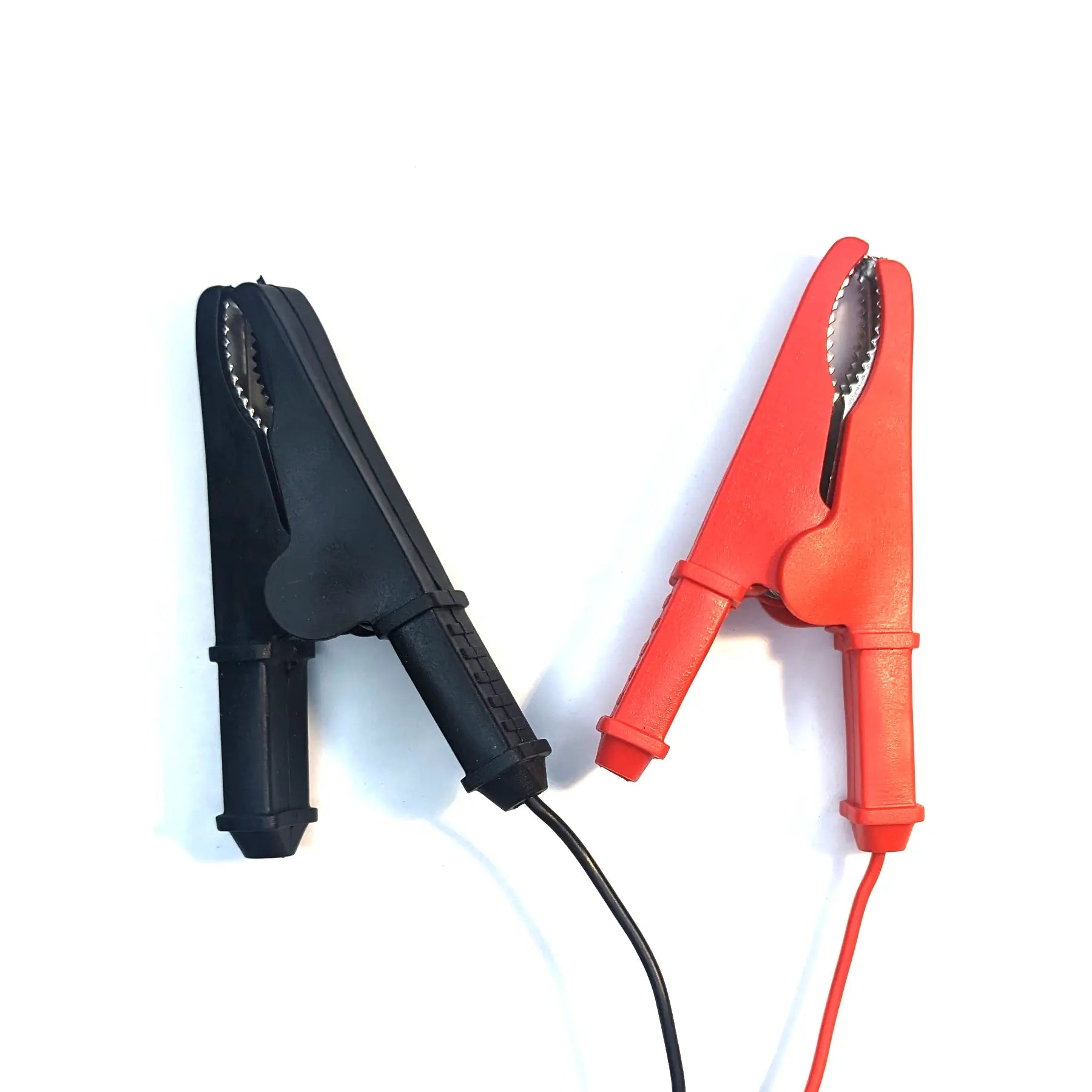

Charging Connector: Alligator Clips*
Input:

AC110-24V, 50/60HZ
Output:

43.8V 5A (CC/CV Charge Profile for 36V Li-ion Batteries)
Capacity (Ah) of the charging battery: 20Ah or higher (recommended)
Weight: 0.55 kg (1.2 lb)
Dimension (L x W x H) Imperial: 6.3 in. x 2.95 in. x 2.17 in.
Dimension (L x W x H): 160mm x 75mm x 55mm
Normal Charge Current: 5.0 Amps
Charge Temperature: 0°C to 45°C
Storage Humidity: 60±25%R.H
Charger Protections*:

Overheat protection,
Overpower protection,
Overcurrent protection,
Overvoltage protection,
Reverse connection protection

 *Protections should also be integrated into Battery Pack BMS and alligator clips may come with a different style than displayed.
