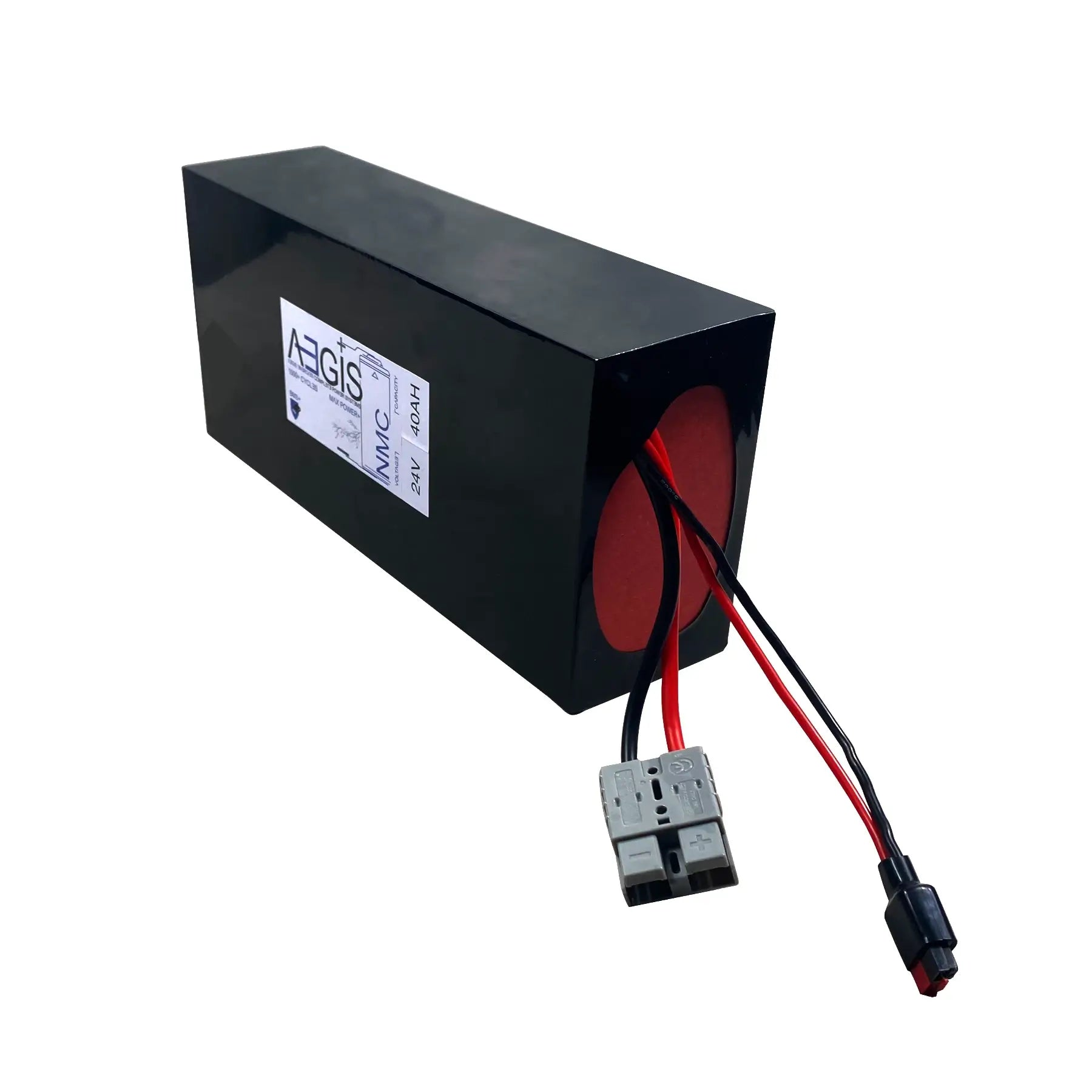

24V 40Ah Li-ion Battery (NMC Deep Cycle)


5 In Stock

Regular price $664.99
The Aegis Battery 24V 40Ah Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for bike lighting, RC toys, robots, laptops, and DVD external batteries. The battery comes with pre-assembled integrated Anderson Power Pole connectors...

The Aegis Battery 24V 40Ah Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for bike lighting, RC toys, robots, laptops, and DVD external batteries. The battery comes with pre-assembled integrated Anderson Power Pole connectors allowing for easy compatibility. The Aegis battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

ABL-024040P Product Manual

Specifications

Battery Type PVC Pack
Battery Chemistry Lithium-Ion
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 24V
Capacity (Ah) 40Ah
Energy Stored (Wh) 960 Watt-Hours
Weight 5.75 kg (12.68 lbs)
Dimension Metric (L x W x H) 310 mm x 140 mm x 80 mm
Dimension Imperial (L x W x H) 12.2 in. x 5.5 in. x 3.1 in.
Discharge Connector SB50 Grey Powerpole
Charge Connector PP45 Red/Black Powerpole
Cycle Life 1000+ cycles
Normal Charge Current 5.0 Amps
Nominal Continuous Discharge Current 20.0 Amps
Maximum Continuous Discharge Current 40.0 Amps
Maximum Peak Discharge Current 80.0 Amps
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing,



Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 29.6VDC
Current: 5A
Connector: IEC C14 (Female)
Model Number: CRG-02405P

NMC Advantage
- Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
- All-Aspect Solution with best overall balance of features
- Highest Specific Energy (150-220Wh/kg)
- Ideally Suited for EV and High Energy Consumption Applications
- Excellent Lifespan (1000-2000 Cycles Average)

Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life

Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- NMC Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid


Policy
Warranty: 2 years standard Lithium-Ion Battery Warranty
Repair or Replace: first 2 years
Returns/exchange: 30 days (Return ⟶ a 10% restocking fee plus shipping; exchange ⟶ charging shipping cost)
Cancellation: Within 24 Hours ⟶ No charge
Shipping: Standard within 2 business days
