12V 30 Ah Li-ion Battery (NMC Deep Cycle) - Aegis Battery

12V, 30 Ah Li-ion Battery (NMC, SOFT PACK ABL-012030P) - Aegisbattery

12V 30 Ah Li-ion Battery - NMC Lithium Ion Deep Cycle

Name: 12V 30 Ah Li-ion Battery - NMC Lithium Ion Deep Cycle
Brand: Aegis Battery
Price: 259.99 USD
Availability: InStock

Write a review

Availability : 5 In Stock

Effective Price : Regular price $259.99

Quantity

Description
Reviews

The Aegis Battery 12V 30Ah Li-Ion Battery is a state of the art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for bike lighting, RC toys, robots, laptops, and DVD external batteries. The battery comes with pre-assembled integrated Anderson Power Pole connectors allowing for easy compatibility. The Aegis battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

ABL-012030P Product Manual

Specifications

Battery Type	PVC Pack
Battery Chemistry	Lithium-Ion
Cell Type/Assembly Method	Cylindrical cells/welded
Voltage (V)	12V
Capacity (Ah)	30Ah
Energy Stored (Wh)	360 Watt-Hours
Weight	2.10 kg (4.63lbs)
Dimension Metric (L x W x H)	230 mm x 80 mm x 80 mm
Dimensions Imperial (L x W x H)	9.1 in. x 3.1 in. x 3.1 in.

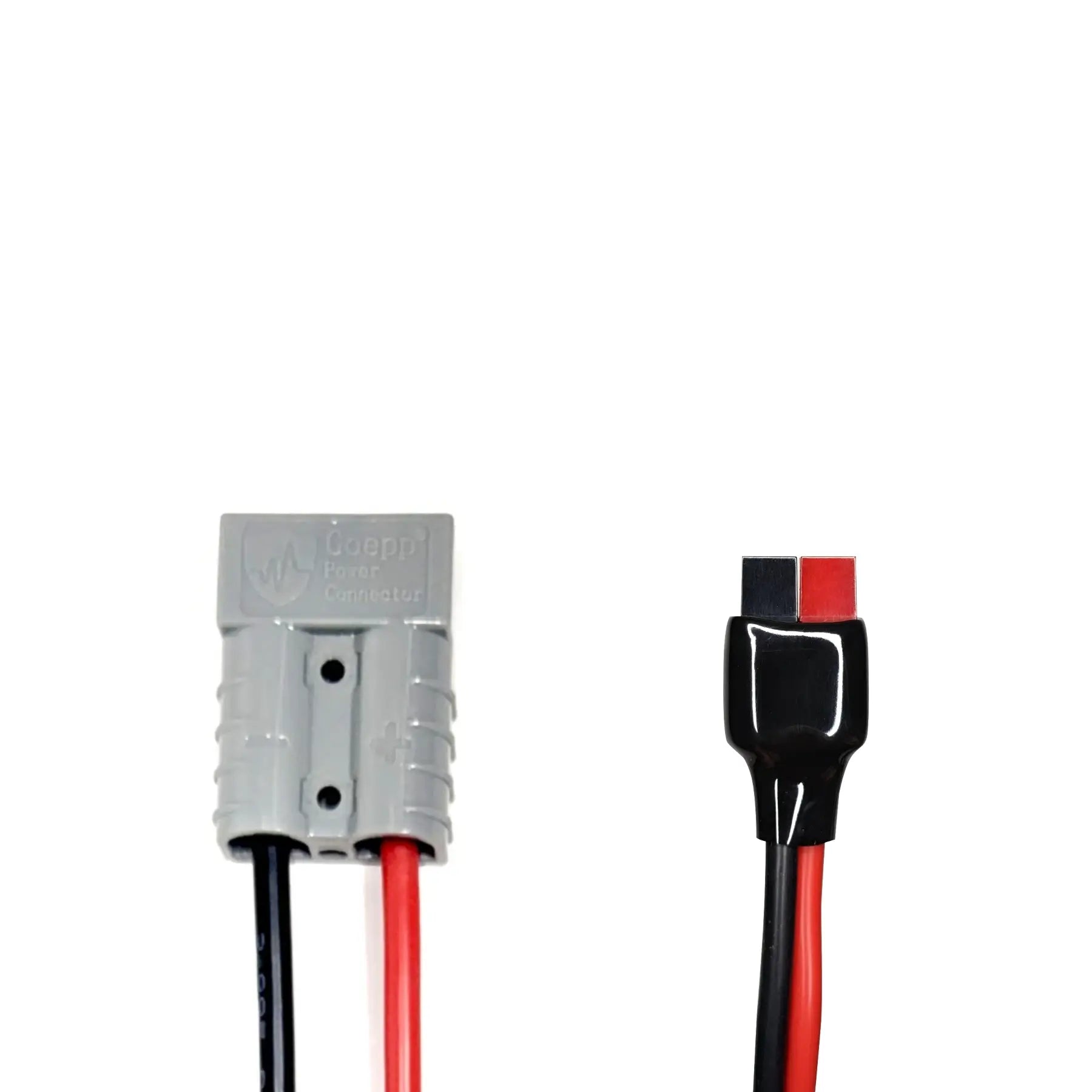

Discharge Connector	PP45 Red/Black Powerpole
Charge Connector	DC Barrel Plug (Female)
Cycle Life	1000+ cycles
Normal Charge Current	5.0 Amps
Nominal Continuous Discharge Current	15.0 Amps
Maximum Continuous Discharge Current	30.0 Amps
Maximum Peak Discharge Current	60.0 Amps
Charge Temperature	0°C to 45°C
Discharge Temperature	-20°C to 60°C
Operating Humidity	60±25%R.H
Storage Humidity	60±25%R.H
Automatic Battery Protection Module/System	Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing

Compatible AC-to-DC Charger Specifications:
Output Voltage: 12.6VDC
Current: 5A
Connector: DC Plug
Model Number: CRG-01205M

NMC Advantage
- Advanced NMC (Nickle Manganese Cobalt Oxide) Li-ion Chemistry superior to traditional Li-ion Batteries
- All-Aspect Solution with best overall balance of features
- Highest Specific Energy (150-220Wh/kg)
- Ideally Suited for EV and High Energy Consumption Applications
- Excellent Lifespan (1000-2000 Cycles Average)

Intelligent Technology
- Battery Management System (BMS) Board as Standard
- Every Battery has bespoke board matching its performance parameters
- Comprehensively balances charging and discharging
- Internal balancing circuitry and charger circuitry inside BMS
- Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
- Dramatically extends service life

Comprehensive Improvements
- Achieve full depth discharge of 100% Label Capacity
- “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
- Reliable, repeatable full depth cycling without system life cycle degradation
- NMC Systems can be fully discharged safely without impact on system performance
- Multiple times usable capacity of Lead Acid
